ACO Threshold Drain Channel With Silver Aluminium Heelguard Grating 61x100x1000mm
ACO Threshold Drain Channel With Silver Aluminium Heelguard Grating 61x100x1000mm

ACO Threshold Drain Channel With Silver Aluminium Heelguard Grating 61x100x1000mm

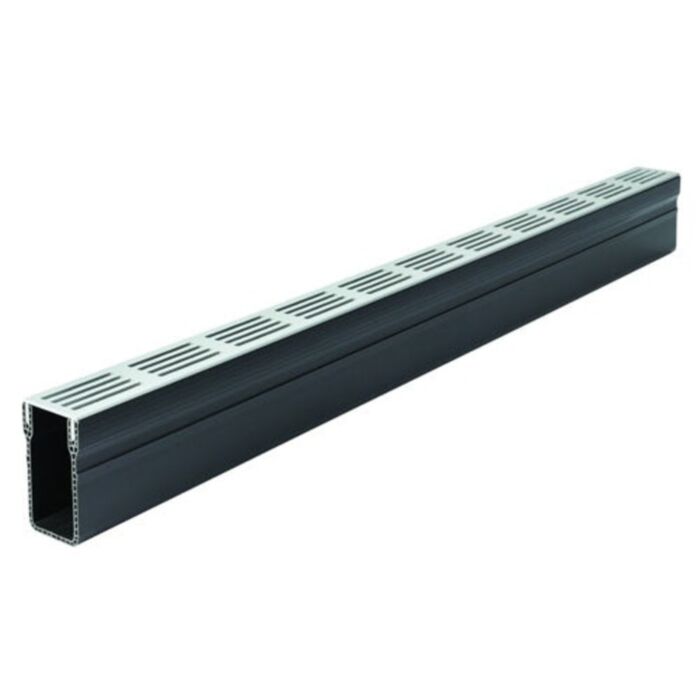

Name: ACO Threshold Drain Channel With Silver Aluminium Heelguard Grating 61x100x1000mm
Brand: ACO
SKU: 109132879
Price: 35.14 GBP
Availability: InStock

In stock

Product Code

109132879

Due to the size of this product it qualifies for 48hr delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£35.14 £29.28

Select branch to check stock

Select postcode to see availability

Product Information

Manufactured from extruded PVC and aluminium, ACO Threshold Drain eliminates water ponding at house entrances. ACO Threshold Drain comes complete with silver aluminium Heelguard grating suitable for pedestrian traffic. The discreet system has a width of 60mm and is available in 1mtr lengths. With a range of accessories available from corner units to vertical outlets, it is now possible to use as part of a modern patio drainage system.

Features:

Quick and easy installation.
Removable Heelguard aluminium grating available in silver or black.
Modern styling.
Outlet available for connection to underground drainage.
System ideal for use with 60mm block paving.
Body of the unit manufactured from extruded PVC.

Applications:

Patios and Paths.
Level Thresholds.
Block Paving.

Technical data:

Brand - ACO
Range - Threshold Drain
Product Type - Drain Channel With Heelguard Grating
Material - Aluminium / Extruded PVC
Colour - Silver
Depth - 100mm
Width - 61mm
Length - 1000mm
Invert Depth - 93mm
Weight - 1.63kg
Load Class - A15

Standards & Certifications:

Fully certified to Load Class A 15 BS EN 1433:2002.
The system is compliant with Part M of the Building Regulations for England and Wales and Section 4 of the Scottish Building Standards.

Please Note:

Not recommended for car parking areas.

Manufacturer Code
19000
Product Type
Drain Channel With Heelguard Grating
Width
61mm
Length
1000mm
Range
Threshold Drain
Material
Aluminium / Extruded PVC
Colour
Silver
Depth
100mm
Weight
1.63kg
Brand
ACO
Brand
ACO
