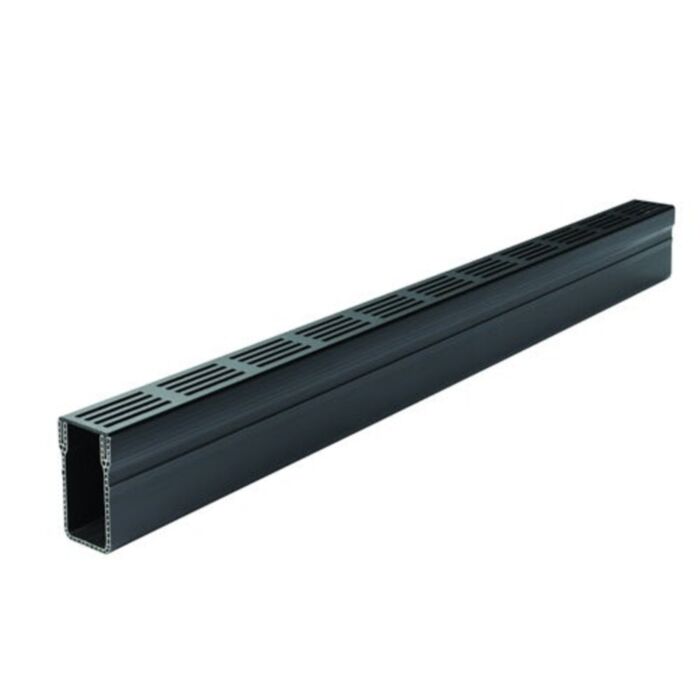

Manufactured from extruded PVC and aluminium, ACO Threshold Drain eliminates water ponding at house entrances. ACO Threshold Drain comes complete with black aluminium Heelguard grating suitable for pedestrian traffic. The discreet system has a width of 60mm and is available in 1mtr lengths. With a range of accessories available from corner units to vertical outlets, it is now possible to use as part of a modern patio drainage system.

Features:

• Quick and easy installation.
• Removable Heelguard aluminium grating available in silver or black.
• Modern styling.
• Outlet available for connection to underground drainage.
• System ideal for use with 60mm block paving.
• Body of the unit manufactured from extruded PVC.

Applications:

• Patios and Paths.
• Level Thresholds.
• Block Paving.

Technical data:

• Brand - ACO
• Range - Threshold Drain
• Product Type - Drain Channel With Heelguard Grating
• Material - Aluminium / Extruded PVC
• Colour - Black
• Depth - 100mm
• Width - 61mm
• Length - 1000mm
• Invert Depth - 93mm
• Weight - 1.63kg
• Load Class - A15

Standards & Certifications:

• Fully certified to Load Class A 15 BS EN 1433:2002.
• The system is compliant with Part M of the Building Regulations for England and Wales and Section 4 of the Scottish Building Standards.

Please Note:

• Not recommended for car parking areas.
