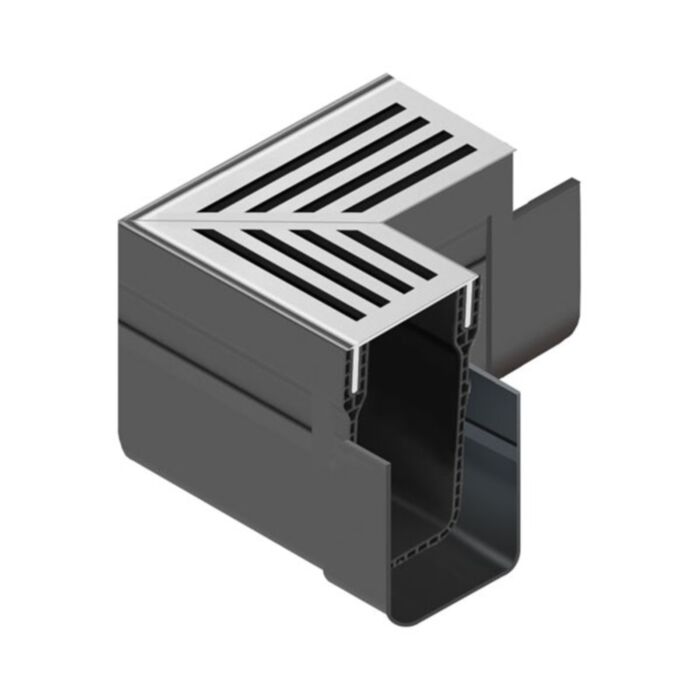

ACO Threshold Drain Channel Corner Unit With Silver Aluminium Heelguard Grating 61x100x159mm
ACO Threshold Drain Channel Corner Unit With Silver Aluminium Heelguard Grating 61x100x159mm
ACO Threshold Drain Channel Corner Unit With Silver Aluminium Heelguard Grating 61x100x159mm
In stock
Product Code
109132884
Manufactured from extruded PVC and aluminium, ACO Threshold Drain eliminates water ponding at house entrances. With silver aluminium Heelguard grating suitable for pedestrian traffic. The discre...Read more
DISCLAIMER
This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.
Manufactured from extruded PVC and aluminium, ACO Threshold Drain eliminates water ponding at house entrances. With silver aluminium Heelguard grating suitable for pedestrian traffic. The discreet system has a width of 60mm and is available in 1mtr lengths. With a range of accessories available from corner units to vertical outlets, it is now possible to use as part of a modern patio drainage system.
Features:
Quick and easy installation.
Modern styling.
Outlet available for connection to underground drainage
System ideal for use with 60mm block paving.
Body of the unit manufactured from extruded PVC.
Applications:
Patios and Paths.
Level Thresholds.
Block Paving.
Technical data:
Brand - ACO
Range - Threshold Drain
Product Type - Drainage Channel Corner Unit
Material - Aluminium/Extruded PVC
Colour - Silver
Depth - 100mm
Width - 61mm
Length - 159mm
Weight - 0.4kg
Invert Depth - 93mm
Load Class - A15
Standards & Certifications:
CE marked and fully certified to Load Class A 15 BS EN 1433:2002
The system is compliant with Part M of the Building Regulations for England and Wales and Section 4 of the Scottish Building Standards.
