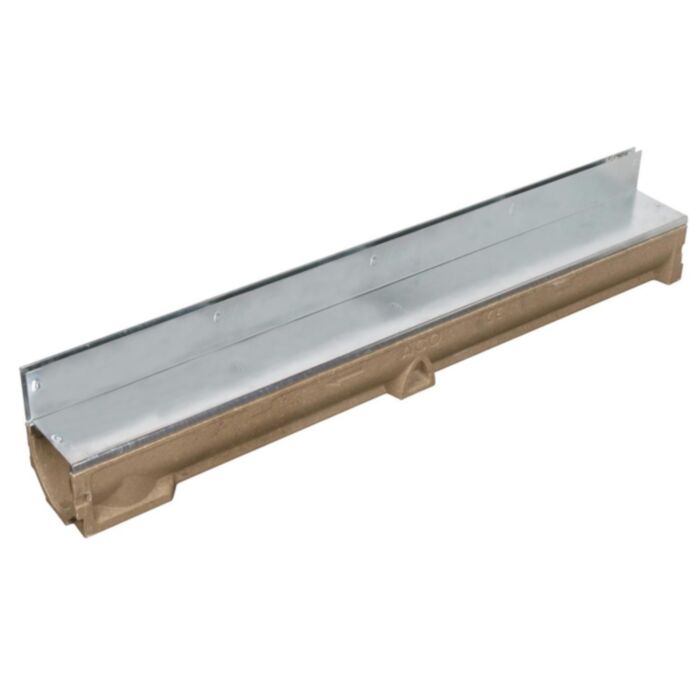

ACO RainDrain Channel & Brickslot With Offset Slotted Grating Galvanised Steel Polymer 118x173x1000mm

ACO RainDrain Channel & Brickslot With Offset Slotted Grating Galvanised Steel Polymer 118x173x1000mm

Name: ACO RainDrain Channel & Brickslot With Offset Slotted Grating Galvanised Steel Polymer 118x173x1000mm
Brand: ACO
SKU: 109111944
Price: 85.7 GBP
Availability: InStock

ACO RainDrain Channel & Brickslot With Offset Slotted Grating Galvanised Steel Polymer 118x173x1000mm

In stock

Product Code

109111944

Provides a discreet slot drainage system for driveways and small private car parks. Features: For domestic and light duty projects where discreet channel drainage is requir...Read more

Your Price

£85.70 £71.42

Select branch to check stock

Select postcode to see availability

Product Information

Provides a discreet slot drainage system for driveways and small private car parks.

Features:

For domestic and light duty projects where discreet channel drainage is required.
High quality recycled polymer channel with galvanised steel slotted grating, suitable for vehicle traffic up to Load Class B125.
Compatible with up to and including 60mm deep block paving.
Discreet 10mm inlet slot.
Channels interlock for quick and easy installation.
Manufactured from recycled material.
Channel shape anchors product into concrete surround.
Knock-out for connection to 110mm PVC-U pipe.

Applications:

Garage Thresholds
Patios and Paths
Pedestrian Precincts

Technical data:

Brand - ACO
Range - RainDrain
Product Type - Channel & Brickslot With Offset Slotted Grating
Material - Polymer Concrete / Steel
Finish - Galvanised
Length - 1000mm
Width - 118mm
Depth - 173mm
Invert Depth - 163mm
Load Class - B125

Standards & Certifications:

CE marked and fully certified to Load Class B125 BS EN 1433:2002.

Manufacturer Code
47002
Delivery Only
No
Brand
ACO
Range
RainDrain
Product Type
Channel & Brickslot With Offset Slotted Grating
Material
Polymer Concrete / Steel
Finish
Galvanised
Width
118mm
Depth
173mm
Length
1000mm
