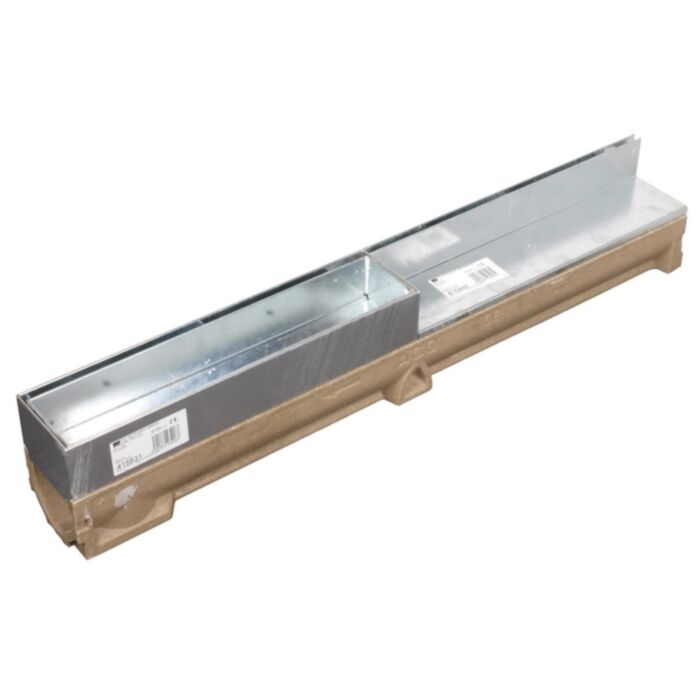

ACO RainDrain B125 Brickslot Access Channe With Galvanised Steel Grate 118x173x1000mm
ACO RainDrain B125 Brickslot Access Channe With Galvanised Steel Grate 118x173x1000mm

ACO RainDrain B125 Brickslot Access Channe With Galvanised Steel Grate 118x173x1000mm

Name: ACO RainDrain B125 Brickslot Access Channe With Galvanised Steel Grate 118x173x1000mm
Brand: ACO
SKU: 109111945
Price: 146.75 GBP
Availability: InStock

In stock

Product Code

109111945

Provides a discreet slot drainage system for driveways and small private car parks. Features: For domestic and light duty projects where discreet channel drainage is requir...Read more

DISCLAIMER

Due to the size of this product it qualifies for 48hr delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£146.75 £122.29

Select branch to check stock

Select postcode to see availability

Product Information

Provides a discreet slot drainage system for driveways and small private car parks.

Features:

For domestic and light duty projects where discreet channel drainage is required.
500mm access unit - To allow cleaning, and 500mm galvanised grate integrated into the channel.
High quality recycled polymer channel with galvanised steel slotted grating, suitable for vehicle traffic up to Load Class B125.
Compatible with up to and including 60mm deep block paving.
Discreet 10mm inlet slot.
Channels interlock for quick and easy installation.
Manufactured from recycled material.
Channel shape anchors product into concrete surround.
Knock-out for connection to 110mm PVC-U pipe.

Applications:

Garage Thresholds
Patios and Paths
Pedestrian Precincts

Technical data:

Brand - ACO
Range - RainDrain
Product Type - Brickslot Access Channel With Grate
Material - Polymer Concrete / Steel
Finish - Galvanised
Length - 1000mm
Width - 118mm
Depth - 173mm
Invert Depth - 163mm
Load Class - B125

Standards & Certifications:

CE marked and fully certified to Load Class B125 BS EN 1433:2002.

Manufacturer Code

47003
Product Type

Brickslot Access Channel With Grate
Finish

Galvanised
Width

118mm
Length

1000mm
Range

RainDrain
Material

Polymer Concrete / Steel
Depth

173mm
Brand

ACO
Brand

ACO
