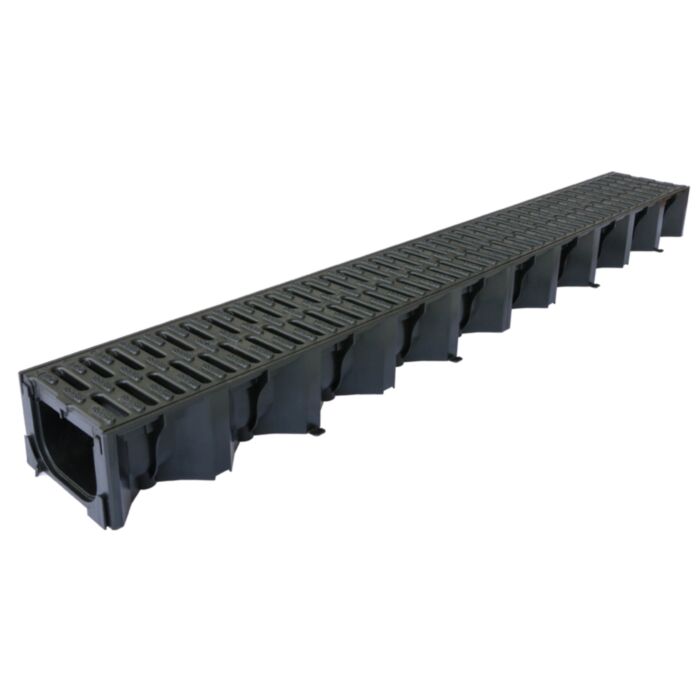

High strength, high quality channel drainage system suitable for a range of domestic drainage applications.

Features:

• High quality recycled polypropylene channel, suitable for pedestrian and vehicle traffic up to 1.5 tonnes.
• Channels clip together for quick and simple on-site fabrication.
• Cutting guide to create half metre channels.
• Installation guide clearly marked on the underside of the channel.
• Choice of eight vertical outlet positions on every channel.
• Easy fit end cap for both male and female connections.
• Cut outs in end cap can be easily removed to provide drainage to soakaway.
• Hexagonal columns give the channel excellent strength for load bearing.
• Outlet connectors plug into the underside of the channel, for simple connection to 110mm diameter U-PVC pipe or ACO HexDrain sump unit.
• Friction-fit, anti-shunt grating eliminates movement.

Applications:

• Garage Thresholds
• Patios and Paths
• Pedestrian Precincts

Technical data:

• Brand - ACO
• Range - HexDrain
• Product Type - Drain Channel With Grate
• Material - Polypropylene
• Colour - Black
• Length - 1000mm
• Width - 125mm
• Height - 80mm
• Invert Depth - 75mm
• Load Class - A15

Standards & Certifications:

• System CE marked and fully certified to Load Class A15 BS EN 1433:2002.
