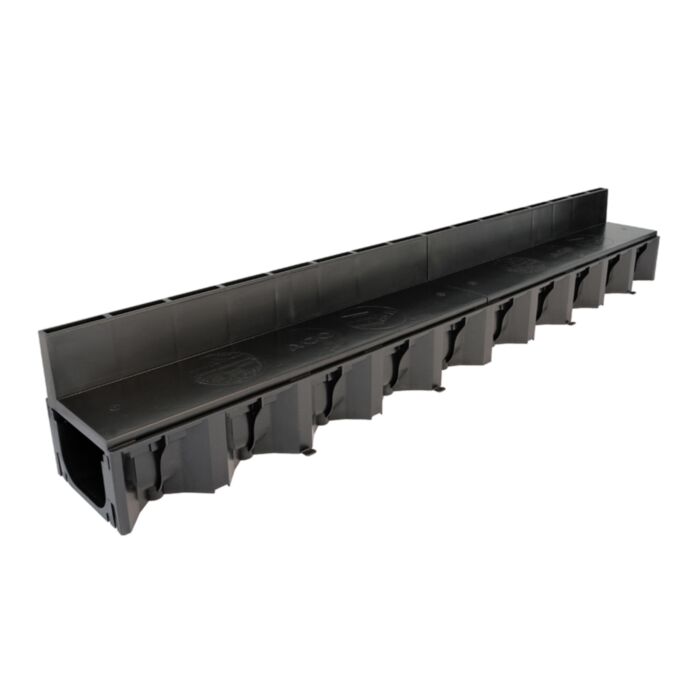

Provides a discreet slot drainage system for domestic block paving installation and threshold drainage.

Features:

• High quality 100% recycled polypropylene channel, suitable for pedestrian and vehicle traffic up to 1.5 tonnes.
• Channels clip together for quick and simple on-site fabrication.
• Offset slot enables drainage location adjacent to walls and door thresholds.
• Offset grating ideal for use with up to 60mm block paving.
• Discreet 10mm inlet slot tapered to prevent blockage.
• Cutting guide to create half metre channels.
• Installation guide clearly marked on the Brickslot cover.
• Debris guard stops the ingress of sand and cement between units during installation.
• Hexagonal columns give the channel excellent strength for load bearing.
• Easy and quick to install.
• Easily cut to 500mm lengths.
• Typically will drain 180m².

Applications:

• Garage Thresholds
• Patios and Paths
• Pedestrian Precincts

Technical data:

• Brand - ACO
• Range - HexDrain Brickslot
• Product Type - Drain Channel
• Material - Polypropylene
• Colour - Black
• Width - 125mm
• Depth - 148mm
• Length - 1000mm
• Invert Depth - 143mm
• Load Class - A15

Standards & Certifications:

• System CE marked and fully certified to Load Class A15 BS EN 1433:2002.
