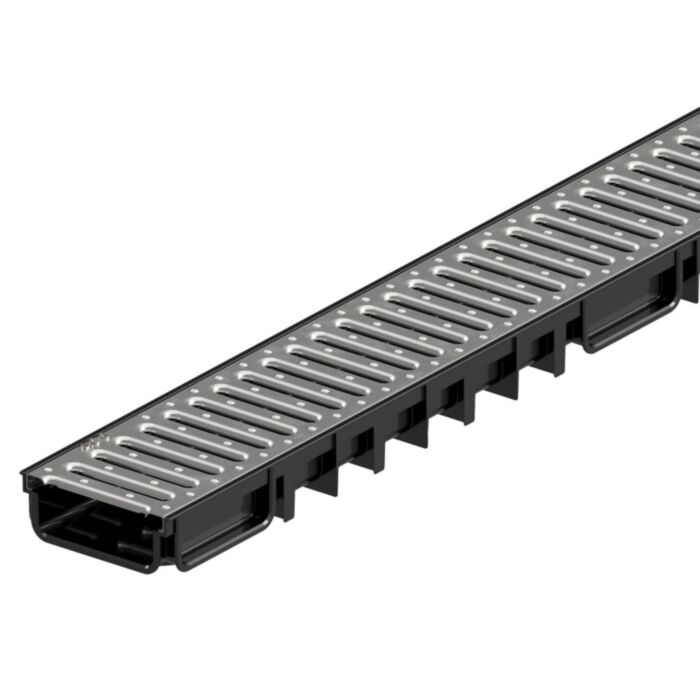

This groundbreaking channel is ideal for drainage in spaces like terraces and balconies, especially in situations where there are restrictions on installation height. This is achievable due to its reduced profile and the introduction of innovative technical features, including the new lateral connections that simplify the installation process.

Features:

• Class A15 channel drainage systems designed for pedestrian use to offer great drainage solutions for pavements, patios and gardens. Can hold a maximum weight of 1.5 tonnes.
• The PP/PE standard grating has 8mm slots, is lightweight, and has a great chemical resistance.
• Completely recyclable and durable.
• It is resistant to water, saline solution, alcohol and does not absorb liquids.
• 4 Side connections make it easy to install, and the accessory kit (sold separately) allows for L and T shape connections between channels.
• With a galvanised steel rail of 5mm traffic exposure in accordance to DIN 19580.
• Allows the possibility to connect two channels and seal male / female connection, plus additional sealing for yearly maintenance

Technical data:

• Brand - ACO
• Range - Easyline H50
• Product Type - Plastic Channel Drain With Grating
• Material - Polypropylene / Steel
• Colour - Black / Chrome
• Finish - Galvanised
• Depth - 50mm
• Width - 125mm
• Length - 1000mm
• Invert Depth - 28mm
• Load Class - A15

Kit consists of:

• 1 x Plastic Channel
• 1 x Steel Grating

Standards & Certifications:

• Certified in accordance to EN14333 : 2002
