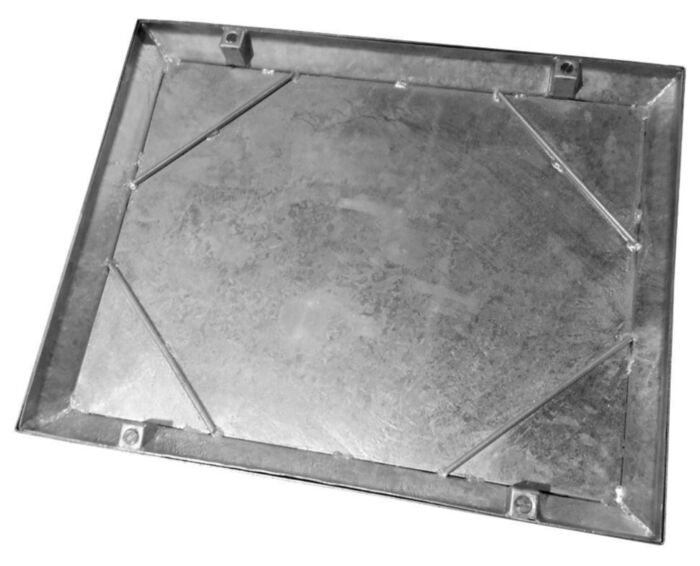

835mm x 835mm are the external dimensions of the Manhole Frame. Designed to be in-filled with a suitable screed or concrete.

Features:

• Ideal for indoor use these unobtrusive access covers can be in-filled with screed, tiles and other floor surfaces.
• 4 locking screws and rubber neoprene seals to resist gas egress and water ingress.
• Manufactured from strong and highly durable mild steel.
• Steel frames have superior adherence to bedding mortar than plastic frames.
• Galvanised.

Technical data:

• Brand - Wrekin
• Product Type - Double Seal Recessed Manhole Cover & Frame
• Material - Steel
• Finish - Galvanised
• Tray Depth - 38mm
• Overall Frame Depth - 58mm
• Clear Opening - 750x750mm
• External Frame Size - 835x835mm
• Gross Laden Vehicle Weigh - 10tn
• Load Duty Description - Light/medium
• Slow Moving Wheel Load - 2.5tn

Standards & Certifications:

• Fully complies to - BS EN ISO 1461
• FACTA Class (Comparative) - AAA

Please note:

• The external overall size of this Manhole Cover is 835x835mm
• Recessed key (hook type) required.
