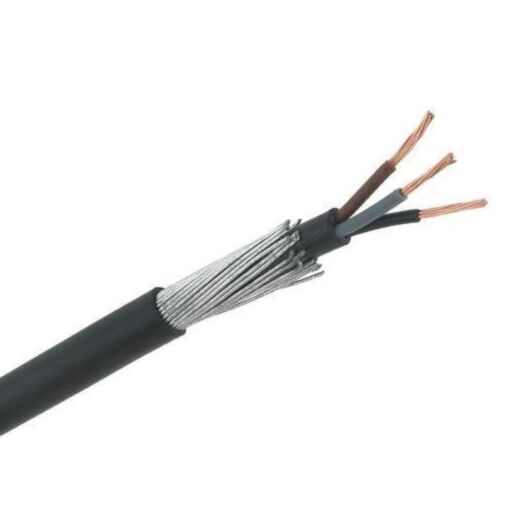

A Steel Wire Armoured (SWA) power and auxiliary control cable with 3 cores suitable for direct burial use as well as surface clipping, trays, baskets, and free air.

Features:

• The Steel Wire Armoured cable (SWA) is designed for use wherever mechanical stress or mechanical damage may occur, including underground and outdoor applications.

Applications:

• Suitable for direct burial use as well as surface clipping, trays, baskets, and free air.

Technical data:

• Range - 6943X
• Product Type - Cable 3 Core Steel Wire Armoured
• Insulation Material - SWA / PVC
• Amperage - 31Amp
• Sheath Colour - Black
• Core Sheath Colours - Brown / Black / Grey
• Length - 10mtr
• Core Diameter - 2.5mm²
• Voltage - 600V / 1000V
• Operating Temperature - -20°C To 90°C
• Short Circuit Temperature - 250°C
• Minimum Bending Radius - 8xD
• Max. Conductor Resistance At 20°C - 1.15Ohm/km
• Type Of Copper Conductor - Stranded

Standards & Certifications:

• BASEC Approved
• UKCA CE ISO 9001.
• Standard: BS 5467

Please Note:

• Should only be installed by a qualified electrician.
