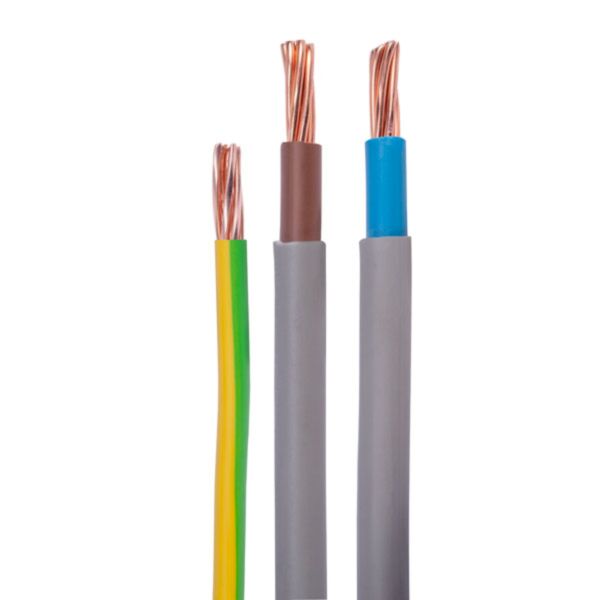

6491X/6181Y Cable Earth Tails Green & Yellow 16mm² With Double Insulated Tails Grey Blue & Grey Brown 25mm² x 2mtr
6491X/6181Y Cable Earth Tails Green & Yellow 16mm² With Double Insulated Tails Grey Blue & Grey Brown 25mm² x 2mtr
6491X/6181Y Cable Earth Tails Green & Yellow 16mm² With Double Insulated Tails Grey Blue & Grey Brown 25mm² x 2mtr
In stock
Product Code
109138210
In both domestic and commercial wiring applications, these cables are commonly used. Features for 6491X Single Core Cable: It is suitable for power and lighting circuits an...Read more
DISCLAIMER
This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.
In both domestic and commercial wiring applications, these cables are commonly used.
Features for 6491X Single Core Cable:
It is suitable for power and lighting circuits and building wiring.
The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.
Use for general electrical applications.
Features for 6181Y Double Insulated:
Wires requiring double insulation are suitable for installation in damp or dry areas.
This product can be used in consumer units.
Technical data for 6491X:
Range - 6491X
Product Type - Single Cable Earth Tails
Insulation Material - PVC
Amperage - 87Amp
Sheath Colour - Green & Yellow
Length - 2mtr
Core Diameter - 16mm²
Voltage - 450V / 750V
Operating Temperature - -15°C To 70°C
Short Circuit Temperature 160°C
Minimum Bending Radius - 4 / 5xD
Max. Conductor Resistance At 20°C - 1.15Ohm/km
Type Of Copper Conductor - Stranded
Technical data for Blue 6181Y:
Range - 6181Y
Product Type - Double Insulated Tails
Insulation Material - PVC
Amperage - 114Amp
Sheath Colour - Grey
Core Sheath Colours - Blue
Length - 2mtr
Core Diameter - 25mm²
Voltage - 450V / 750V
Operating Temperature - -15°C To 90°C
Short Circuit Temperature 250°C
Minimum Bending Radius - 8xD
Max. Conductor Resistance At 20°C - 0.727Ohm/km
Type Of Copper Conductor - Stranded
Technical data for Brown 6181Y:
Range - 6181Y
Product Type - Double Insulated Tails
Insulation Material - PVC
Amperage - 114Amp
Sheath Colour - Grey
Core Sheath Colours - Brown
Length - 2mtr
Core Diameter - 25mm²
Voltage - 450V / 750V
Operating Temperature - -15°C To 90°C
Short Circuit Temperature 250°C
Minimum Bending Radius - 8xD
Max. Conductor Resistance At 20°C - 0.727Ohm/km
Type Of Copper Conductor - Stranded
Standards & Certifications:
The conductors are stranded copper class 2 according to BS 6004:2012.
Please Note:
All products should only be installed by a qualified electrician.
