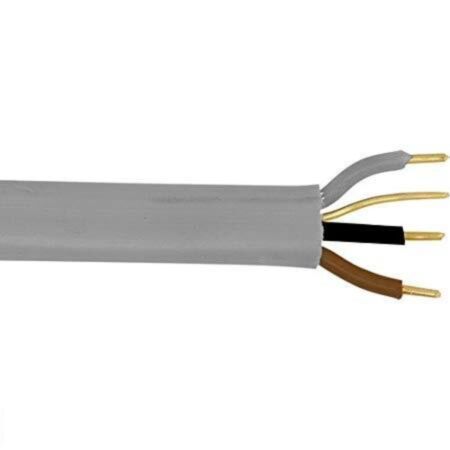

6243Y Cable 3 Core & Earth Grey 1.5mm²

In stock
Product Code
107993503
Domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where mechanical damage would not be an issue. Suitable for lay...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price
£69.49 £57.91
Sold by / Roll of 100mtr
Click & Collect Delivery
Add to Project List

Select branch to check stock

Select postcode to see availability

Domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where mechanical damage would not be an issue. Suitable for laying in conduit or trunking where mechanical protection is required.

Features:

  • A three-core and earth cable, which means that it has three insulated conductors (usually brown, blue, and black) and a bare copper earth wire.
  • The "Y" in the cable code indicates that it is a PVC (polyvinyl chloride) insulated cable.

Applications:

  • Trunking where mechanical protection is required.
  • Suitable for higher load 2-way lighting circuits.

Technical data:

  • Range - 6243Y
  • Product Type - Cable 3 Core & Earth
  • Insulation Material - PVC
  • Sheath Colour - Grey
  • Core Sheath Colours - Black / Brown / Grey
  • No. of Cores - 3+E
  • Voltage - 300V / 500V
  • Core Diameter - 1.5mm²
  • Amperage - 20Amp
  • Operating Temperature - -15°C To 70°C
  • Type Of Copper Conductor - Solid

Standards & Certifications:

  • BASEC Approved
  • UKCA CE ISO 9001
  • Standard: BS 6004:2012

Please Note:

  • Should only be installed by a qualified electrician.

  • Product Type
    Cable 3 Core & Earth
  • Range
    6243Y
  • Material
    PVC
  • Colour
    Grey
  • Size
    1.5mm²
  • Amperage
    20Amp
  • Voltage
    300V / 500V
  • Core Diameter
    1.5mm²
  • Sheath Colour
    Grey
  • Voltage Rating
    300V / 500V
  • Core Sheath Colours
    Black / Brown / Grey
  • No. of Cores
    3+E
