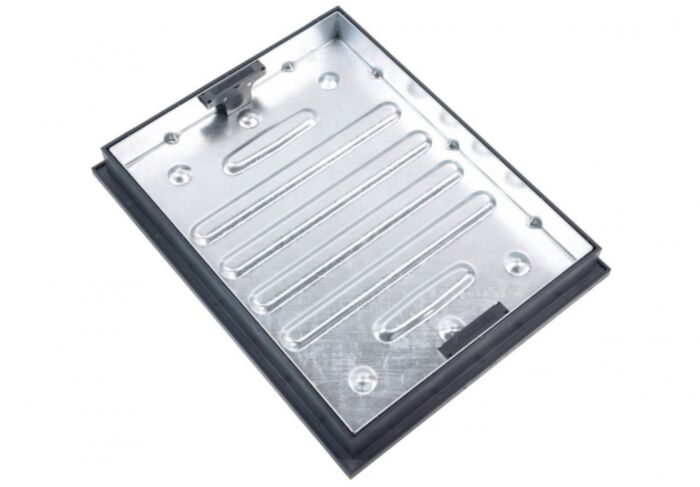

545mm x 695mm are the external dimensions of this Manhole Frame. For use in areas of block paving where it is desirable to have continuity of surface finish and pattern.
Features:
Recessed cover and frame.
Ideal for domestic paved driveway and loading environments.
Manufactured from strong and highly durable mild steel with grade AP9 polypropylene frame.
Galvanised for long-term corrosion resistance.
Including Integral lifting keys, tested to withstand 120Kg of direct lift
Recessed 65mm.
Technical data:
Brand - CLARK-DRAIN
Product Type - Manhole Cover
Material - Steel / Polypropylene
Finish - Galvanised
Internal Depth - 65mm
Internal Width - 450mm
Internal Length - 600mm
External Depth - 98mm
External Width - 545mm
External Length - 695mm
Clear Opening Width - 450mm
Clear Opening Length - 600mm
Weight - 12Kg
Loading Weight - 10tn
Standards & Certifications:
Under BSI-Certified IS0 9001:2015 Quality Management Systems
FACTA (clauses no. 7.0, 7.2, 7.2.1, 7.2.3 & 7.3.3)
Supplied with:
Integral lifting keys
Please Note:
The weight loading capabilities are given under the assumption that the recess will be correctly filled with screed or concrete to the right level.
