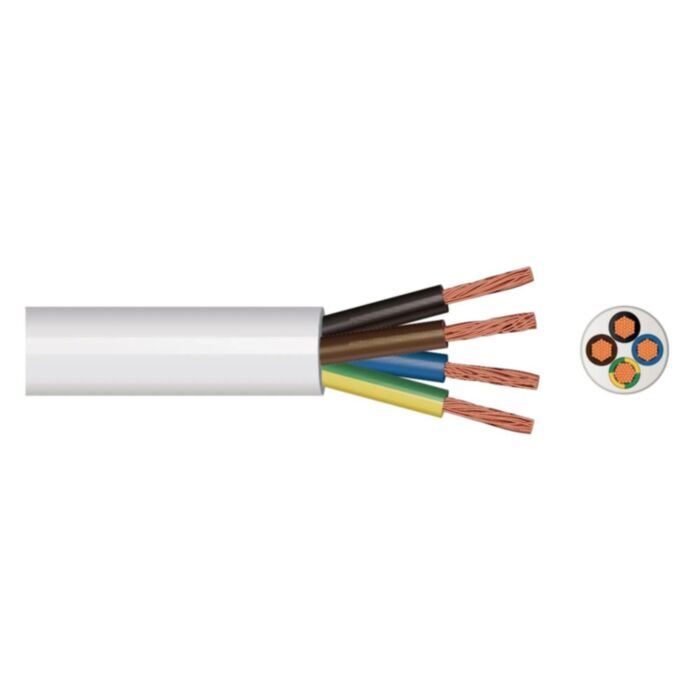

High quality, flexible cable that is ideal for use in heating controls. It is made from high quality PVC insulation that is resistant to moisture, abrasion, and chemicals. Features: ...Read more
DISCLAIMER
This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.
High quality, flexible cable that is ideal for use in heating controls. It is made from high quality PVC insulation that is resistant to moisture, abrasion, and chemicals.
Features:
PVC insulated standard duty flexible round profile cable.
Outdoor or industrial use is generally not recommended.
The copper core of this cable is fine-stranded.
Applications:
Heating Controls.
Technical data:
Range - 3184Y
Product Type - Cable 4 Core Flex
Insulation Material - PVC
Sheath Colour - White
Core Sheath Colours - Black / Blue / Brown / Green & Yellow
No. of Cores - 4
Diameter - 7.3mm
Core Diameter - 0.75mm²
Amperage - 6Amp
Voltage - 300V / 500V
Operating Temperature - -15°C To 70°C
Short Circuit Temperature 160°C
Minimum Bending Radius - 5xD
Max. Conductor Resistance At 20°C - 26Ohm/km
Type Of Copper Conductor - Fine-Stranded
Standards & Certifications:
BASEC Approved
HAR
UKCA CE ISO 9001.
Standard: BS EN 50525-2-11
Please Note:
Should only be installed by a qualified electrician.
