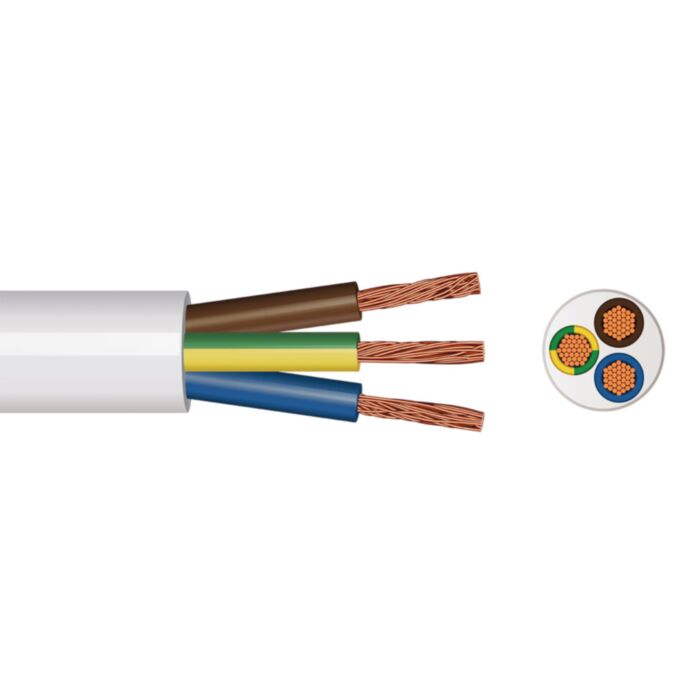

3183Y Cable 3 Core Round Flex White 1.0mm² x 5mtr
3183Y Cable 3 Core Round Flex White 1.0mm² x 5mtr

3183Y Cable 3 Core Round Flex White 1.0mm² x 5mtr

Name: 3183Y Cable 3 Core Round Flex White 1.0mm² x 5mtr
SKU: 109138214
Price: 5.1 GBP
Availability: InStock

In stock

Product Code

109138214

High quality, flexible cable that is ideal for a wide range of applications. It is made from high quality PVC insulation that is resistant to moisture, abrasion, and chemicals. Features:...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£5.10 £4.25

Product Information

High quality, flexible cable that is ideal for a wide range of applications. It is made from high quality PVC insulation that is resistant to moisture, abrasion, and chemicals.

Features:

This cable is UV-Resistant to ensure that it will not fade or crack in the sun.
Outdoor or industrial use is generally not recommended.
The copper core of this cable is fine-stranded.

Applications:

Small domestic appliances.
Washing machines.
Spin dryers.
Refrigerators.

Technical data:

Range - 3183Y
Product Type - 3 Core Round Flexible Cable
Insulation Material - PVC
Amperage - 10Amp
Sheath Colour - White
Core Sheath Colours - Blue / Brown / Green & Yellow
No. of Cores - 3
Length - 5mtr
Diameter - 7mm
Core Diameter - 1mm²
Voltage - 300V / 500V
Operating Temperature - -15°C To 70°C
Short Circuit Temperature 160°C
Minimum Bending Radius - 5xD
Max. Conductor Resistance At 20°C - 19.5Ohm/km
Type Of Copper Conductor - Fine-Stranded

Standards & Certifications:

BASEC Approved
HAR
UKCA CE ISO 9001.
Standard: BS EN 50525-2-11

Please Note:

Should only be installed by a qualified electrician.

Product Type
3 Core Round Flexible Cable
Length
5mtr
Range
3183Y
Material
PVC
Amperage
10Amp
Voltage
300V / 500V
Core Diameter
1mm²
Sheath Colour
White
Core Sheath Colours
Blue / Brown / Green & Yellow
No. of Cores
3
