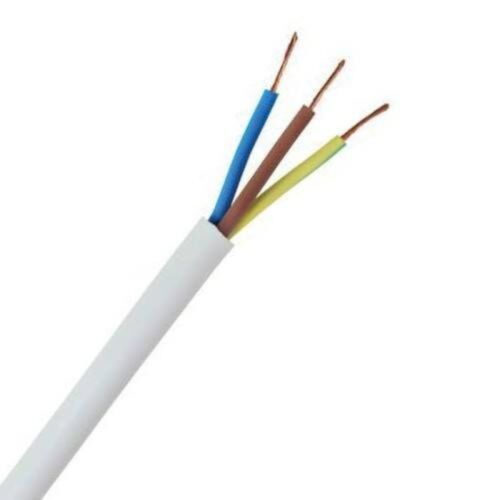

3093Y Cable 3 Core Heat Resistant White 2.5mm² x 100mtr
3093Y Cable 3 Core Heat Resistant White 2.5mm² x 100mtr

3093Y Cable 3 Core Heat Resistant White 2.5mm² x 100mtr

Name: 3093Y Cable 3 Core Heat Resistant White 2.5mm² x 100mtr
SKU: 10000347
Price: 155.53 GBP
Availability: InStock

In stock

Product Code

10000347

Circular flexible 3 core cable rated for use up to 500 Volts. Ideally suited for use in high temperature areas (Up to 90°C) such as boiler and central heating applications such as immersion hea...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.

Your Price

£155.53 £129.61

Select branch to check stock

Select postcode to see availability

Product Information

Features:

Supply leads for use as 318-Y but particularly for use in high temperature zones, for internal wiring or supply cords to electrical apparatus.
Not suitable for outdoor use.
Fine stranded copper core.
Heat resisting PVC insulated.

Applications:

Electric hobs and heating elements.

Technical data:

Range - 3093Y
Product Type - Cable 3 Core Flex Heat Resistant
Insulation Material - PVC
Sheath Colour - White
Core Sheath Colours - Blue / Brown / Green & Yellow
No. of Cores - 3
Diameter - 10mm
Core Diameter - 2.5mm²
Voltage - 300V / 500V
Amperage - 25Amp
Operating Temperature - -15°C To 90°C

Standards & Certifications:

HAR
UKCA CE
Standard: BS EN 50525-2-11

Please Note:

Not suitable for outdoor use.
Should only be installed by a qualified electrician.

Product Type
Cable 3 Core Flex Heat Resistant
Thickness
1.1mm
Range
3093Y
Material
PVC
Colour
White
Amperage
25Amp
Voltage
300V / 500V
Core Diameter
2.5mm²
Sheath Colour
White
Diameter
9.2mm
Core Sheath Colours
Blue / Brown / Green & Yellow
No. of Cores
3

Shipping and Returns

Check for Delivery

Returns

This product can be returned if returned unopened, unused and in a fully resalable condition, including the original packaging.

Click here for the MP Moran return policy
