Wago Connector Compact Push Wire 3 Conductor 2.5mm 24Amp

Wago Connector Compact Push Wire 3 Conductor 2.5mm 24Amp

In stock
Product Code
109116291
The Wago Connector Compact Push Wire 3 Conductor 2.5mm 24Amp is designed for efficient and secure electrical installations. This compact connector is ideal for use in both surfa...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.


Your Price
£0.41 £0.34

Select branch to check stock

Select postcode to see availability

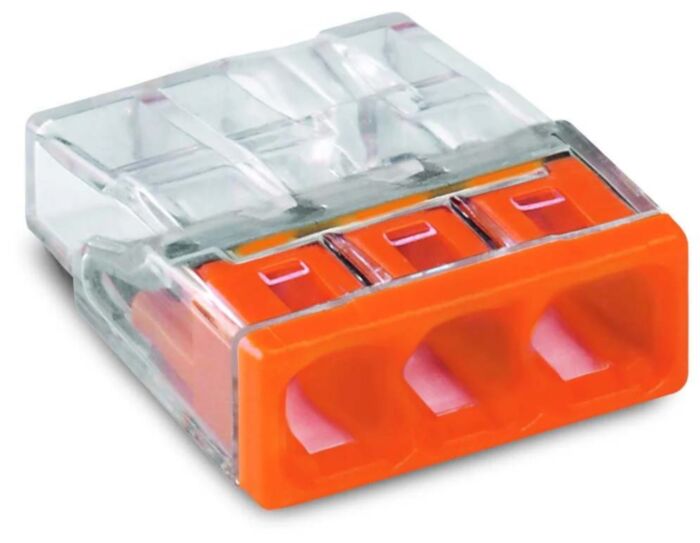

The Wago Connector Compact Push Wire 3 Conductor 2.5mm 24Amp is designed for efficient and secure electrical installations. This compact connector is ideal for use in both surface-mounted and flush-mounted junction boxes, providing a reliable connection for solid conductors up to 2.5 mm². With its transparent housing and orange cover, it offers easy inspection of connections, ensuring safety and compliance with electrical standards.

Features & Benefits:

  • Compact design for easy installation in tight spaces.
  • Transparent housing for quick visual inspection of connections.
  • Supports conductor cross sections from 0.5 mm² to 2.5 mm².
  • Rated for a maximum current of 24 Amp, suitable for high-load applications.
  • Tin-coated contact surface enhances conductivity and prevents corrosion.
  • Utilises PUSH WIRE® technology for fast and secure connections.

Applications:

  • Suitable for use in residential and commercial electrical installations.
  • Ideal for connecting solid conductors in junction boxes.
  • Perfect for both surface-mounted and flush-mounted installations.

Technical Data:

  • Brand - Wago
  • Product Type - Push Wire Connector
  • Connection Type - Push Wire
  • Material - Tin-coated
  • Colour - Transparent
  • Diameter - 2.5mm
  • Depth - 16.7mm
  • Height - 5.8mm
  • Width - 14mm
  • Voltage - 450V
  • Amperage - 24Amp
  • Temperature Rating - 60°C
  • Number of Conductors - 3

Ensure your electrical connections are secure and efficient with the Wago Connector Compact Push Wire 3 Conductor 2.5mm 24Amp. Order now to experience the reliability and convenience of Wago's innovative connector technology.

  • Manufacturer Code
    2273-203
  • Delivery Only
    No
  • Product Type
    Push Wire Connector
  • Brand
    Wago
  • Material
    Tin-coated
  • Colour
    Transparent
  • Depth
    16.7mm
  • Height
    5.8mm
  • Width
    14mm
  • Diameter
    2.5mm
  • Voltage
    450V
  • Amperage
    24Amp
