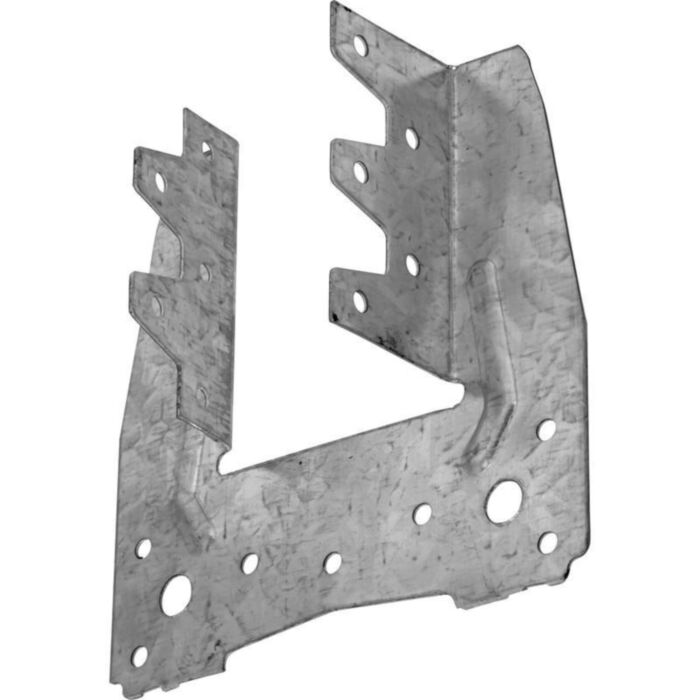

Truss Clip 50mm

Truss Clip 50mm

In stock
Product Code
100017673
Features: Eliminates the disadvantages of skew nailing trussed rafters to timber wall plates; damaged connector plates; split rafters or wall plates. For secure fixing of...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.


Your Price
£1.48 £1.23

Select branch to check stock

Select postcode to see availability

Features:

  • Eliminates the disadvantages of skew nailing trussed rafters to timber wall plates; damaged connector plates; split rafters or wall plates.
  • For secure fixing of trusses to wall plates to provide wind restraint.
  • No danger of damage to timber caused by inaccurate nailing.
  • Suitable for 50mm wide trusses.
  • Fix using 3.75x30mm long square twisted sherardised nails in all available holes.
  • Manufactured from 0.9mm thick pre-galvanized mild steel to BS EN10346: 2015, DX51D + Z275.

Technical data:

  • Material - Mild Steel
  • Finish - Galvanised
  • Thickness - 0.9mm
  • Overall height - 117mm
  • Oveall width - 114mm
  • Hole diameter - 4mm
  • Complies to - BS EN10346: 2015, DX51D + Z275

Please note - Ensure that the wall plate is fixed to the supporting masonry with vertical restraint straps (standard straps).

  • Delivery Only
    No
  • Product Type
    Truss Clip
  • Brand
    Generic
  • Material
    Mild Steel
  • Colour
    Steel
  • Finish
    Galvanised
  • Height
    114.3mm
  • Width
    50mm
  • Length
    117.5mm
  • Quantity in Pack
    1pk
