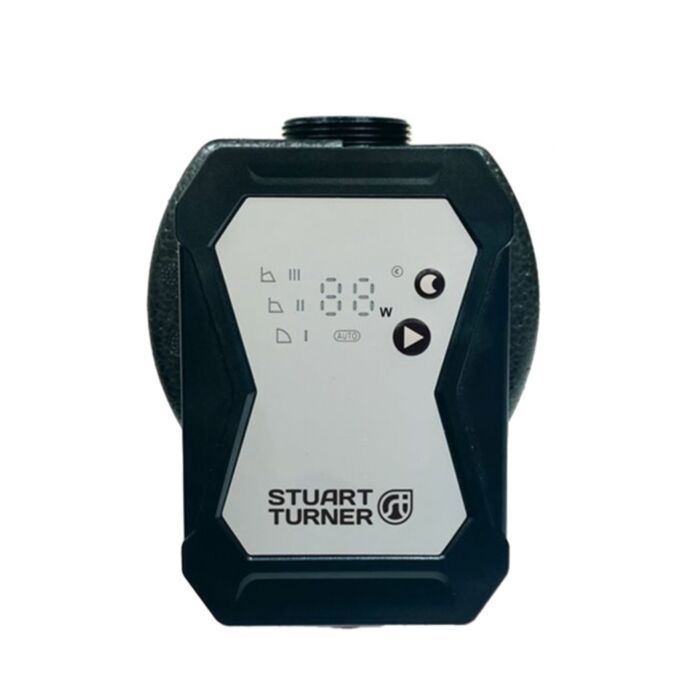

Stuart Turner Pulse 25/60-130 Cast Iron Heating Circulating Pump 230V

Stuart Turner Pulse 25/60-130 Cast Iron Heating Circulating Pump 230V

In stock
Product Code
109148332
The Stuart Turner Pulse 25/60-130 Cast Iron Heating Circulating Pump 230V is a premium circulator designed for hot water heating systems, offering flow rates up to 3.6m³/hr and...Read more

DISCLAIMER

This product qualifies for next working day delivery provided it is in stock and your order is placed by 1pm Monday to Thursday. For full T&C's read our Delivery Information.


Last chance to buy!
Great products, at even better prices...
But hurry as once they are gone, they are gone!
Your Price
Now £90.01 £75.01 Was £113.99 £94.99

Select branch to check stock

Select postcode to see availability

The Stuart Turner Pulse 25/60-130 Cast Iron Heating Circulating Pump 230V is a premium circulator designed for hot water heating systems, offering flow rates up to 3.6m³/hr and heads of 6 metres. With energy-efficient ECM technology, it features multiple operating modes, a 1.3mtr power cable, and a 5-year warranty, ensuring reliability and ease of use.

Features & Benefits:

  • High flow rates up to 3.6m³/hr.
  • Maximum head of 6 metres for efficient circulation.
  • Energy efficient operation with EEI ≤ 0.20.
  • Automatic adapt and proportional pressure modes for optimal performance.
  • Constant pressure and constant speed modes for versatile applications.
  • Includes a 1.3mtr power cable for easy installation.
  • Shrouded connector for safe and secure connections.
  • LED display control panel for user-friendly operation.
  • Anti-lock function to prevent pump seizing.
  • Insulation shell included for improved energy efficiency.
  • Built-in over-current, temperature, and overvoltage protection for safety.
  • 5 year warranty for peace of mind and reliability.
  • Suitable for hot water heating systems and underfloor heating applications.
  • Compatible with air conditioning and ventilation systems.
  • Cast iron construction for durability and longevity.
  • Variable speed settings for customized performance.

Applications:

  • Hot water heating systems
  • Underfloor heating
  • Pre-plumbed cylinder applications
  • Boiler applications
  • Air conditioning systems
  • Ventilation systems
  • Replacement for existing heating system circulators

Technical Data:

  • Brand - Stuart Turner
  • Range - Pulse 25/60-130
  • Product Type - Heating Circulating Pump
  • Material - Cast Iron
  • Depth - 138mm
  • Width - 93mm
  • Height - 130mm
  • Weight - 2.12kg
  • IP Rating - IP42
  • Voltage - 230V
  • Fitting Length - 130mm
  • Maximum Head - 6.0mtr
  • Maximum Flow - 3.6 m³/hr
  • Maximum Working Pressure - 10Bar
  • Minimum Inlet Pressure - 0.05Bar (up to 75 °C)
  • Min / Max Water Temperature - 5 °C to 110 °C
  • Max Ambient Air Temperature - 40 °C
  • Inlet / Outlet - G 1½
  • Motor Type - Permanent magnet rotor
  • Duty Rating - Continuous (S1)
  • Wattage - 4.5-38W
  • Amperage - 0.17Amp
  • Fuse Rating - 5Amp
  • EEI - ≤ 0.20
  • Warranty - 5 years

Standards & Certifications:

  • UKCA certification
  • CE certification
  • ErP compliance (EEI ≤ 0.20)

Don't miss out on the opportunity to enhance your heating system with the STUART PULSE Trade 25/60-130 Cast Iron Heating Circulating Pump 230V, available now online or in our London shops, where superior energy efficiency and reliability await you.

  • Manufacturer Code
    47505
  • Delivery Only
    No
  • Product Type
    Central Heating Pump
  • Brand
    Stuart Turner
  • Range
    Pulse 25/60-130
  • Material
    Cast Iron
  • Depth
    138mm
  • Height
    103mm
  • Width
    93mm
  • Voltage
    230V
  • Wattage
    4.5-38W
  • Amperage
    0.71Amp
  • Pressure
    10Bar
  • IP Rating
    IP42
  • Max. Flow
    3.6 m³/hr
  • Manufacturer Guarantee
    5 Years
