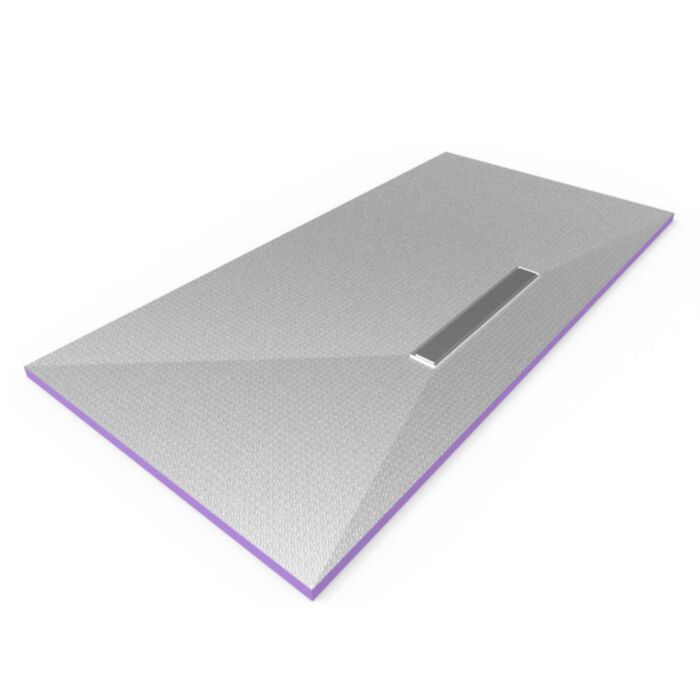

Jackoboard Aqua Line Easy Shower Tray Rectangular With Linear Edge Drain 30x900x1800mm

Jackoboard Aqua Line Easy Shower Tray Rectangular With Linear Edge Drain 30x900x1800mm

In stock
Product Code
109138859
The Jackoboard Aqua Line Easy Shower Tray Rectangular With Linear Edge Drain 30x900x1800mm is a pre-formed waterproof shower tray designed to create a tiled shower base with an ...Read more
Your Price
£472.56 £393.80

Select branch to check stock

Select postcode to see availability

The Jackoboard Aqua Line Easy Shower Tray Rectangular With Linear Edge Drain 30x900x1800mm is a pre-formed waterproof shower tray designed to create a tiled shower base with an integrated linear drain channel. Manufactured from extruded polystyrene foam with a glass-fibre reinforced mesh and cementitious coating on both faces, it provides a suitable tiling surface with pre-formed falls to help direct water towards the drain channel.

Features & Benefits:

  • Pre-formed waterproof shower tray with integrated linear drain channel
  • Extruded polystyrene foam core with glass-fibre reinforced cementitious coating
  • Pre-formed falls help direct water towards the drain channel
  • Suitable for all floor types when installed correctly
  • 30mm tray thickness is suitable for different floor applications
  • Can be cut, repaired and trimmed to suit the installation
  • Suitable for wheelchair access once tiled with suitable tiles
  • Drain is accessible for cleaning
  • Horizontal or vertical drain options available
  • Surface is suitable for tiling

Applications:

  • Tiled shower tray installations
  • Wet room and walk-in shower areas
  • Level-access shower applications
  • Bathroom renovation and new-build projects
  • Installations requiring a pre-formed waterproof shower base
  • Wheelchair-accessible shower areas when tiled with suitable tiles

Technical Data:

  • Brand - Jackoboard
  • Range - Aqua Line Easy
  • Product Type - Shower Tray
  • Material - Extruded Polystyrene (XPS) Foam
  • Surface Coating - Glass-Fibre Reinforced Mesh & Cementitious Coating
  • Shape - Rectangular
  • Fall - 4-Sided
  • Thickness - 30mm
  • Width - 900mm
  • Length - 1800mm
  • Channel Width - 550mm
  • Drain Position - Edge
  • Drain Type - Linear Drain Channel
  • Drain Options - Horizontal or Vertical
  • Designed Drainage Rate - 0.6ltr/s
  • Water Seal - 22mm
  • Minimum Tile Size - 25x25x4mm
  • Wheelchair-Accessible Tile Size - 50x50x6.5mm
  • Compressive Strength - >300kPa
  • Tensile Strength - >200kPa
  • Fire Behaviour - Euroclass E
  • Thermal Conductivity - 0.034W/m.K

Standards & Certifications:

  • Compressive Strength Tested To EN 826
  • Thermal Conductivity Tested To EN 13164

Please note:

  • Trays must be fully supported during installation.
  • A tray sealing kit is required.
  • Bond using a C1 or C2 cement-based flexible tile adhesive.
  • Not suitable for vinyl floor applications.
  • The tray surface should be clean, wiped with clean water and allowed to dry before tiling.
  • For tiles smaller than the minimum tile size, joints must be grouted with epoxy resin grout.

Choose the Jackoboard Aqua Line Easy Shower Tray Rectangular With Linear Edge Drain 30x900x1800mm for a pre-formed waterproof tiled shower base with an integrated linear drain channel, available now online or at our London shops.

  • Manufacturer Code
    4517485
  • Delivery Only
    No
  • Product Type
    Shower Tray
  • Brand
    Jackoboard
  • Range
    Aqua Line Easy
  • Style
    Linear Edge Drain
  • Shape
    Rectangular
  • Material
    XPS Foam
  • Finish
    Glass-Fibre Reinforced Cementitious Coating
  • Thickness
    30mm
  • Width
    900mm
  • Length
    1800mm
