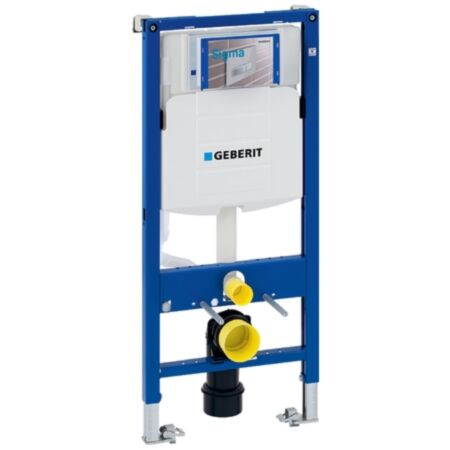

Geberit Duofix Wall Hung WC Frame 1120mm With Sigma Cistern 120mm

Geberit Duofix Wall Hung WC Frame 1120mm With Sigma Cistern 120mm

Name: Geberit Duofix Wall Hung WC Frame 1120mm With Sigma Cistern 120mm
Brand: Geberit
SKU: 107993020
Price: 289.63 GBP
Availability: InStock

Geberit Duofix Wall Hung WC Frame 1120mm With Sigma Cistern 120mm

In stock

Product Code

107993020

Frame for wall-hung WC, 1120mm, with Sigma concealed cistern 120mm, wall anchoring and connection bend. Features: Self-supporting frame, powder-coated. Frame w...Read more

DISCLAIMER

Last chance to buy!

Great products, at even better prices...

But hurry as once they are gone, they are gone!

Your Price

£289.63 £241.36

Select branch to check stock

Select postcode to see availability

Product Information

Frame for wall-hung WC, 1120mm, with Sigma concealed cistern 120mm, wall anchoring and connection bend.

Features:

Self-supporting frame, powder-coated.
Frame with ø 9mm drilling holes for fastening in wood frame construction.
Frame prepared for support brackets for WC ceramic appliances with small contact surfaces.
Leg support zinc-plated, adjustable 0-200mm.
Non-slip leg supports.
Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails.
Connection bend can be mounted without tools at different depths, adjustable range 45mm.
Fastening for connection bend, sound-absorbing.
Concealed cistern with front actuation, fully insulated against condensation.
Cistern fulfils standard requirements in accordance with EN 14055, Class II.
Immediate post flush possible with factory setting.
Tool-free installation and maintenance work on concealed cistern.
Water supply connection, rear or top centre.
Protection cover box for service opening protects against moisture and dirt.
Protection box for service opening can be cut to length.
Equipped with conduit pipe for feed.

Technical data:

Brand - Geberit
Cistern Brand - Sigma
Product Type - Wall Hung WC Frame With Cistern
Height - 1120mm
Cistern Width - 120mm
Connection Diameter - 90mm
Flow Pressure - 0.1 to 10Bar
Max. Operating Temperature, Water - 25°C
Flush Volume, Factory Setting - 5.8ltr and 3ltr
Flush Volume Small, Adjustment Range - 3 to 4ltr

Applications:

For drywall construction.
For installation in part- or room-height prewall installations.
For installation in room-height installation walls.
For installation in part- or room-height Geberit Duofix system walls.
For wall-hung WCs with connection dimensions in accordance with EN 33:2011.
For wall-hung WCs with projection up to 620mm.
For floor constructions 0-200mm.

Supplied with:

Water supply connection R ½", compatible with MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
2 x Wall anchorings
2 x Protection plugs
Connection set for WC, ø 90mm
Connection bend 90° made of PE-HD, ø 90mm
Adaptor socket made of PE-HD, ø 90/110mm
Cup for flush volume reduction 4.0/2.6ltr
2 x M12 threaded rods
Fastening material

Please note - Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame.

What is the Geberit Duofix 1120mm frame with Sigma cistern designed for?

The Geberit Duofix 1120mm frame with Sigma 120mm cistern is a self-supporting installation frame for wall-hung WCs, designed for modern drywall and prewall constructions. It can be used in part-or full-height prewalls and full-height installation walls, including Geberit Duofix system walls. The frame suits wall-hung toilets with EN 33:2011 connection dimensions and projections up to 62cm. It is also compatible with floor constructions from 0–20mm, giving flexibility on site. Overall, it provides a robust, concealed solution for installing a wall-hung WC and cistern.

Manufacturer Code
111.383.00.3
Delivery Only
No
Brand
Geberit
Range
Duofix
Product Type
Wall Hung WC Frame With Concealed Cistern
Mounting
Floor
Capacity
6ltr
Diameter
90mm
Width
500mm
Height
1120mm
Depth
120mm

Shipping and Returns

Check for Delivery

Returns

This product can be returned if returned unopened, unused and in a fully resalable condition, including the original packaging.
